1987 - Ein Flyer der "neuen" BTS mit Philips gibt Einblicke ....

Die Robert Bosch AG Stuttgart holte 1986 Philips mit ins Boot, weil dieses Boot bereits bedenklich schwankte. Dieser kleine Flyer gibt Einblicke, wie zwei Produktfamilien zusammengeführt werden mußten. Zur Einstiegsseite hier klicken.


Weiter geht es mit deutschen Produkten aus Darmstadt


Die BCN Videorecorder ist 1988 immer noch !! im Programm

Die BCN Scanner-Technik wurde von Arvin/Echo "übernommen". Sie wurde nicht geklaut, wie es damals oft hieß, denn sie war weder geschützt noch patentiert. Das Knowhow war 1973/74 von deutschen Ingenieuren "reverse engineered" worden. Diese Scanner-Technik hatte aber 2 Schwächen (gegen über vielen Stärken). Die BCN-Laufwerke konnten normalerweise weder Slow-Motion noch schnellen Vorlauf oder schnellen Rücklauf.

Ein Fernsehbild war nämlich auf zwei nebeneinander liegenden Spuren aufgeteilt und das mit SlowMotion ging dann alles erst mit dem (damals recht teuren) Halbleiter- Bild- Zwischenspeicher (für über 60.000 DM Aufpreis). Die späteren C-Format Maschinen von Ampex/Sony (ab 1977/78) hatten ein gesamtes (vollständiges) Bild auf einer Spur und konnten das alles Dank SONYs Piezo-Schwabbelköpfen von Hause aus - jedoch auch wieder mit anderen Macken.


BCN 52/53 VTR

The BCN 52/53 which has been developed by BTS (bereits in 1974 !!) combines for the first time the well known advantages of the B format with equipmentfeatures, which up till now were not possible with segmented recording.

Continuous operation from slow motion to normal speed can only be achieved in other formats with the aid of moveable heads and the drawbacks that this entails - short head life, limited duration for still frames.

The BCN 52/53 makes it possible, by using the latest storage technology, to cover a continuous slow motion range from 0.25 reverse to normal playback speed forwards, without reducing the excellent B format head life.

The bandwidth of the buffer store used guarantees high picture definition when the transition to slow motion is made. As still frames are stored electronically they can be displayed for an unlimited period of time without tape demage.

Another new feature is separate video head monitoring, which is included as standard. It enables the picture quality to be assessed during recording. The extra video heads considerably increase the system's operating reliability, as the second pair of heads takes over playback in the case of a breakdown.
• Slow motion range from 0.25 reverse to full playback speed forwards-with high resolution
• Visible search in black/white, up to 12 times normal speed forward and reverse
• No playback time limit on electronically stored still frames
• Separate head confidence monitoring of video and audio quality during recording
• Choice of remote control interfaces: parallel, fully compatible with the BCN 41/51; serial two-wire connection to select two different slave machines;
RS 423 interface for SMPTE, Bosch and BBE 900 format
• Connection to various editing systems
• 1500 hours headwheel guarantee
• Dolby A® or Telcom noise reduction
• Automatic audio balance available for different types of tape
• Separate instruments for audio 1 - 3 and video
• Phase corrected equalization means that there is practically no loss of audio quality when multiple copies are produced
• 21/2 hours playing time with 12.5" reels
• 19 inch version available for rack installation (BCN 53)

BCN 41/51 VTR

Thousand's of BCN 41/51 Stationary VTR's are in operation worldwide and have proved their reliability in million's of working hours. Headlife of up to 14.000 hrs has been reported, proving the low operating cost of the system. This "work-horse" will remain part of our product line beside the new products.
• 1 inch B format
• High quality until 7th generation
• Guaranteed interchangeability
• Operates in wide temperature and humidity ranges
• Playback/Recording of single frames
• 2 Channel audio
• Integrated editing facilities
• Complete VTR family (portable/stationary/multicassette)

Extended Play- BCN 41/51 A-EP

The BCN 41 /51 basic version can be equipped with an additional BC 820 kit for extended play. The modification is simple and fast.

- Similar to the long play version
• Operation with 12-inch reels
• 35 % increased tape capacity
• Increased recording/reproduction time: Approx. 130 min. with 12-inch reels
• Playing time can be further extended by a combination with a long play version (extension factor x 2).

BPS9A Slow-motion Programmer

• Programmable slow motion replay of various takes or high-lights (e. g. goal scene etc.). Analysis of motion sequences or for replay of still pictures from any kind of programme
• Substitute for complex disk store systems

• Programmable slow motion, forward and reverse
• Programmable single frame selection
• Automatic selection between normal and slow motion mode
• Variable slow motion speed
• Remote control of the main tape deck funktions

BFS9B Single-frame Display

• For picture archiving with fast access to individual pictures (135,000 pictures on a 90 minute one-inch tape), picture sequences (programme takes) or logos
• Replacement of slide archives where the slides have so far been reproduced conventionally
• Single frame recording and reproduction
• Remote control of main tape deck functions
• Automatic frame selection
• Automatic reproduction of picture sequences
• Fast search mode

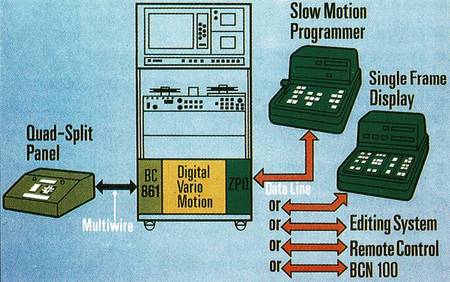

DVM Digital Vario Motion (Digital Video Memory)

A BCN 51 DVM unit with its associated accessories provides VTR technology with valuable production aids.


  • Anmerkung : Was hier so fast nebensächlich eingefügt ist, war ein Marketing- Politikum und das war damals sehr teuer. BTS mußte den Ampex/Sony Entwicklern Paroli bieten. Um mit einer BCN Maschine Einzelbild (Standbild) oder Slow Motion zu machen, mußte eines der beiden Halbbilder zwischengespeichert werden und die dafür notwendigen RAM Module kosteten (damals) fast 60.000.- DM. Professor Hausdörfer hatte mir die ganze Story erzählt. Man brauchte dafür den dritten Einschub ganz unten in dem fahrbaren BCN 51 Rahmen und der Kunde sollte 100.000.- DM Aufpreis berappen. Dafür bekam man fast die ganze Ampex 1" Maschine. Ob die Japaner wieder mal gelächelt hatten ?


BCN 21 Portable VTR

Technological progress and, of course, the requirements of the BCN users led to the new-generation portable BCN 21 series.
By employing the latest carbon fibre technique for the housing, tape deck base plate and LSI chips for the major part of the electronics, it was possible to reduce the weight by 50 %.The BCN 21 weighs only 9.3 kg even when fully equipped and although the characteristics are improved.

• Weight: 7.5 kg (16.6 lbs) without battery and tape 9.3 kg (20.1 lbs) with battery and tape
• 6.5 inch standard reels for 20 minutes playing time 9 inch standard reels for 60 minutes playing time
• Colour monitoring output
• Video and audio monitoring on any home receiver (with optional HF modulator)
• Internal 12 V/2.5 Ah battery or external 12 V DC-supply
• Field editing with the scene
• Correction of edit decisions
• Status monitor (LCD display) fortimecode, operating modes or failure
• Built-in juCtimecode generator
• Presetting of timecode and user bits
• IN, OUT cue marks for Master and Slave
• Search function with two frame editing accuracy (tape timer)
• Fully remote control facilities
• Instant edits with 1 second backspace
• Sophisticated audio system

BCN100 Automatic Multicassette VTR

The applications of the BCN 100 can be devided into four main groups:

1. A programmable playback machine for news, advertising or sports events recorded on 20 minute cassettes.

2. Application as a continuous recorder with 7 times as much recording capacity as a normal BCN 51.

3. The BCN 100 can be used as a self-contained editing system providing one master and two slave decks plus one external source, FDL 60 or BCN 51 /52.

4. Alternatively, the BCN 100 can be used in full slave-editing operation to an external VTR, whereby all 3 decks provide takes for assembly on a reel-to-reel machine.

• Programmable playback machine for on air news, advertising, sport events, prime time programme etc.
• Random access to 32 BCN cassettes with NAB hub reels
• More than 10 hours continuous unattended play/record capacity
• Access to different programme sections on the same cassette
• Parallel recording for added security on important feeds
• Self contained editing system with one master and three slaves
• Three deck slave operation to an external master VTR
• Data display monitor shows magazine contents, lists, status


The FDL 60 has many features that make it superior to conventional film scanners.

The FDL 60 is a telecine without tubes
It uses new generation long life CCD line sensors eliminating burn-in and lag problems. Each frame is scanned only once, line sequentially and without deflection voltages, so field flicker cannot occur and the vertical resolution is absolutely constant.

The result is first class picture quality with high resolution, excellent signal to noise ratio and brillant colour rendition allowing even those red hues to be faithfully reproduced.

Capstan drive and digital signal processing provide entirely new operational modes
Slow motion and fast motion, forward and reverse, and freeze frame are all in excellent quality. Finding scenes or single frames is made easy by the variable programmable search facility and step mode - with full format colour pictures. Start and stop are instant and frame accurate and the deck can handle film lengths up to 1200 metres.

The FDL 60 dramatically reduces costs
The digital signal processing needs no maintenance and the CCD sensors are free from wear with typical semiconductor reliability and operating life. Forget about drifting circuitry, expensive tube changes and line up problems.
Standard Features

• CCD line sensors
- extreme long life, no burn in, no afterglow
• Capstan drive
- smooth and quiet film motion
- gentle handling of original negative film
- fast shuttle up 625 frame/s
• Digital signal processing
- progressive scanning avoids flicker and shrinkage problems
- slow motion and fast motion, forward and reverse and freeze frame in high picture quality
• Quick format change
- change from 35 mm to 16 mm optical block in seconds
• Select-A-Speed
- variable speed between 16.00 and 30.00 frames/s
• Freeze Start and Instant Stop - broadcastable
• Pan Scan Cinema Scope (only B1, B2)
• Negative and positive film operation
• Automatic shading and fixed pattern correction
• Automatic colour correction with manual access
• Black stretch for high contrast cinema prints
• 16mmand35mmCOMOPT, 16 mm COMMAG
• Low operational costs
- high stability and reliability by digital processing and CCD sensors
- long life mechanical parts
- inexpensive 24 V halogen lamp
• Film timer for cue, autocue, freeze and changeover
• All colour TV standards, component video output
• Change from spools to cores in seconds
• Two independent audio channels
- stereo or two different languages

• Digital film grain reducer FDGR
- unique improvement in picture quality
• Secondary colour processor FDSC
- including six sector correction of hue, saturation and luminance
- independent colourimetric improvement of red, yellow, green, cyan, blue and magenta
• Negative matching
• Super 8 optical block and COMMAG unit
• 35 mm Dolby optical stereo sound
• 35 mm COMMAG one-track and four-tracks
• SEPMAG interface for different sound followers
- eliminates film scratches
• 1 -2 change over
- continuous reproduction of cinema films
• A/B interface for synchronous start of two FDLs
• X-Yzoom with ATX-100 and camera aperture optical block 35 mm
• New sensor CCD 134
• Anti blooming sensor
- improved shadow reproduction of high contrast prints without the danger of blooming effects
• Improved low light level parameters

FDGR Film Grain Reducer

The film grain reducer reduces the visibility of film grain noise. It is a fully digitised unit with an ECL-interface for the in- and outsignal. In principle the FDGR is a recursive filter with a frame store. A part of the output signal is fed back to the input. The ratio of the direct signal to the delayed signal defines the grain/noise reduction. An automatic circuit, measuring the input noise as well as the movement in the picture signal, optimises the signal to noise ratio and prevents smearing and lag effects at moving pictures.

FRP60 - Film Reproduction Programmer

Comprehensive Film Reproduction Programmer: additional to colour correction programming, totally independent programmers for pan scan, telecine transport functions (including image freeze), audio functions and customer definable functions (25 switching and 6 analogue) available

Standard Features
• 12bit resolution for all 48 analogue channels
• 800 events in battery buffered solid state memory (> 256 K RAM)
• Standard event list for 32 basic correction set ups of different film stocks
• 8 scratch pad memories for direct comparison of different colour corrections (simulate camera matching)
• Unlimited reediting:
- Reuse of any stored event (instantaneous random access) for actual scene
• V- synchronised switching of corrections
• Human Interface:
- Messages, warnings in plain text
- Plain text identification of scenes and standard events
• Automatic test- and diagnostic system TADS:
- Access via commercial data terminal

Performance Characteristics
- No need to centre the pots and joysticks when recalling events
-Transparent orientation in even less by electronic interlock of data display and film position
• FADE-Corrections:
- Dynamic linear interpolated transition between different corrections, also used for Pans (S-Curve customer selectable)
• ADJUST-Mode:
- global edits for the whole event list
• UPDATE-Function:
global corrections of scene beginnings in the event list, after cutting or splicing a piece of film

• Secondary Colour Correction
- corrections of colour hue, saturation and luminance in six sectors
- continuous chroma control -dark desatu ration
-white, black and gamma level of the luminance signal -separate activated function: six sector-chroma-luminance
• Automatic scene change detector:
- automatic marking of the scene changes without the presence of the operator
• Digital film grain reducer FDGR programmable -for matching scenes with different graininess
• User definable functions
-for programming switchers, subtitlers, etc.
• Floppy disk, printer
• Automatic field - accurate film-to-tape transfer by means of an intergrated editing system
• C-Format Interface
- for BVH 2000, PAL, NTSC
-for VPR 6, PAL, NTSC under development

• Reproductable film-to-tape edits
• Field-accurate edits
• FDL slow motion edits
• Automatic edit simulation (preview)
• Edit out point decision by telecine or by VTR
• Auto Preset mode
• Auto Assemble mode
• Synchronuous playback of telecine and VTR - assists A/B-roll transfer

FGS 4500 Elite Computer Graphic System

The FGS 4500 Graphic Animation System is capable of modeling 2 and 3 dimensional objects, choreographing animation sequences up to the greatest complexity and rendering the images in realtime or as single frames and recording it under host control onto videotape or into digital single frames disk recorders.

For high resolution imagerendering images will be rendered as digital datas on to streamer tape for reading by high resolution printing scanners. Imageresolution may go up to 4000 by 4000 pixels for this application. The system is proud of its interactive methods for the construction and surface treatment of objects and adding colouration and textural qualities.

General System Features
• Latest techniques in shading include solid texture mapping, reflectance mapping and texture wrapping
• Ability to interactively design sophistcated motion
• Dynamic human interface providing with continuous response for quick results
• Ability to complex grouping of objects for animation
• Accurate control over every motion parameter by trajectory editor
• Special effects with glows, streaks, texturemapping, smooth shaded textured objects and multiple light sources
• ETHERNET Interface for satellite workstations
• Automated single frame recording control for VTR and digital disc recorder

FGS 4500 Illustrator Paint System

The FGS 4500 is a high quality 3D illustrator paint system. Its the basic FGS 4500 hardware with 2 and 3 dimensional objectmodeling and painting software. The FGS 4500 three dimensional capabilities make itthe most sophisticated paint system. By adding on the animation and the special effects software it will become a full facility FGS 4500 Elite.

• 2- and 3 dimensional object modeling
• Selectable brushes
• Selectable transparency
• Colour selection of 16 millions colourshades, all display-able
• Cut and paste, stencilling, masking functions
• Illustration of images with 3 dimensional objects applying smooth shading, texturemapping and setting of coloured light sources
• Realtime framegrab for illustration in full colour resolution
• Rotoscoping facility

FGS 4500 - Satellite Modeling Workstation

The modeling satellite is a stand alone system for object modeling with latest sophisticated modeling software available. It communicates with the FGS 4500 Elite over high speed ETHERNET Bus. With use of this satellite workstation more jobs may be processed through the FGS Graphic Network for increased production.

• SUN computer based off line package
• Data transfer over high speed ETHERNET data link to FGS 4500 for animation / rendering
• Enhanced modeling capability with 2- and 3D editor
• Model building like extrusion, merging and surface of resolution
• Lofting capability for interconnection two dimensional boundries in a definable path

FGS 4500 - Satellite Rendering Workstation

The rendering workstation is a standalone system for offloading rendering work in video resolution and variable high resolution for use in other mediums. By off-loading the rendering process it increases the throughput of the FGS network by providing simoultaneous motion design and rendering.This results in considerable time saving as the FGS 4500 is only needed for a short time to record the frames to tape.

For quality printed materials a resoloution of 4000 lines is often required. The satellite renderer creates anti-aliased images with resolution variable from 64 to 4000 lines. The higher resolutions are stored onto magnetic tape which can be read by a film recorder to create the final image. The satellite is linked with the FGS 4500 via ETHERNET. The filesforthe desired animation are senttothe rendersatellite. The user may define the parameters for rendering, Picture ratio, portion of picture desired and resolution are interactively selected and the film recorder interface chosen.

• Stand alone system based on SUN Computer with ETHERNET link to FGS 4500
• Powerful rendering software for video resolution
• Increases productivity by integration into FGS Graphic network
• Variable high resolution from 64 to 4000 lines.

Vidifont Viditext II System

The Viditext II system is a distinctive operator oriented character graphics generator and includes animation capability, time sequential overlays and playback sequence controlling.

In Viditext II is integrated a comfortable Font/Logo composition system with simoultaneous on-line access to Font/Logo compose and the Character/Animation capabilities. The system is menue driven and allows full screen artwork capture.

• Compact design installation
• Standard typewriter keyboard
• 4096 Colour palette
• 8 On line channel independent fonts
• Realtime animation
• Multiple channel-2 on line
• 6 off line channels with windows and templates
• Font and logo compose
• Anti-aliased fonts
• Vidivote Electron reporting package
• Floppy and hard disk drives

Vidifont Graphicstore - Paint & Library System

The paint & library system is for creative image creation and storing the images into a library system. It combines the multiuser flexibility of the VIDIFONT products with full colour, full frame graphics creation, cataloging, storage and playback.

It captures full colour artwork of freeze frame live video from external sources and allows modification and illustration. Images are stored on hard disk with capacity of 250 full frames per disk drive which are randomly accessible. Total capacity of images is 2000 full frame pictures.

Pictures may be played back manually in slide tray sequence using forward, backup and skip functions. Or playback timeing and sequence may be linked and automatically triggered by VIDITEXTII messages and animations.

• Full facility paint functions
• Over2000 colours displayable selectable of 16.7 millions
• Cut and paste montaging
• Colour cycling
• Stencils
• 3-D perspective
• Off-line rendering
• Single or multiple frame tape editing
• Enlarge 2x, 4x -realtime scroll is doubled by adding second drive to basic storage unit

Damit ist der Bereich Software abgehakt
und es geht weiter mit Hardware


RME - Compact Production Switcher Family

The new RME family of compact, microprocessor-controlled production switchers combine new ideas in switcher design with intelligent layout, providing creative freedom for all programming styles without unneccessary operational complexity.

  • • R51 ME single-level switcher plus flip-flop or mix, 10 inputs, and downstream keyer
  • • R 61 ME single-level switcher plus flip-flop, 16 or 24 inputs, and optional two channel downstream keyer
  • • R 102 ME two-level switcher plus flip-flop, 16 or 24 inputs, and two channel downstream keyer

All three models can be equipped with optional control function memory for storing of up to 100 takes. Floppy disk storage is available for memory extension or record/recall of pre-programmed takes and sequences. Control and switcher functions are transmitted via serial data line between the control panel and the electronics. Interfaces are included for editing systems such as the BTS Mach One® and digital production effects systems.

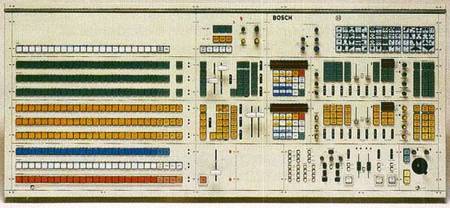

R102 ME - Compact Production Switcher

• 16 or 24 Inputs (incl.Black) + 5 title inputs
• 2 variable Mix-Key stages with 6 inputs each: A, B, KEY-FILL, VIDEO KEY, TITLE KEY, COLOUR GENERATOR
• ON-AIR Mix-Key inversion
• Coupled or separate fading of A and B signals with split lever
• Automatic title insert in each level via CUT/WIPE/MIX
• 60 patterns: 32 standard, 19 rotating, 9 combined
• H + V pattern multiplier
• Pattern positioner with H and V preset and position memory
• Microprocessor control
• Power failure protected switcher functions
• Optional control function memory (CFM)
• Optional two channel downstream keyer
• Optional edit interface
• Optional AFV-stage

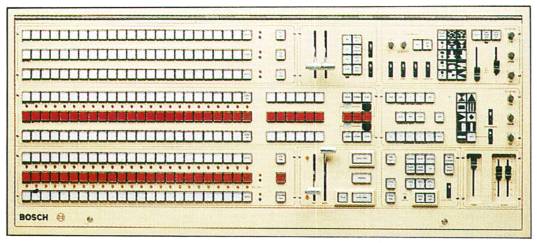

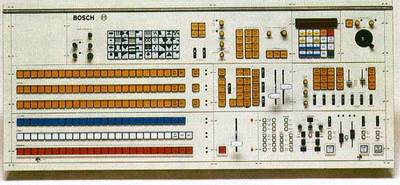

R61ME Compact Production Switcher

• 16 or 24 inputs (incl. Black) + 5 title inputs
• Variable Mix-Key stage with 6 inputs: A, B, KEY-FILL, VIDEO
• ON-AIR Mix-Key inversion
• Coupled or separate fading of A and B signals with split lever
• Automatic title insert via CUT/WIP
• 40 patterns; 24 standard, 12 rotating, 4 combined
• H + V pattern multiplier
• Pattern positioner with H and V preset and position memory
• Microprocessor control
• Power failure protected switcher functions
• Optional control function memory (CFM)..
• Optional two channel downstream keyer
• Optional edit interface
• Optional AFV-stage

R51 ME Compact Production Switcher

• 8 inputs, Black and Colour + 2 title inputs
• Mix-key stage with 5 inputs: A, B, KEY-FILL, VIDEO KEY, COLOUR GENERATOR
• Coupled or separate fading of A and B signal with split lever
• 30 patterns; 15 standard, 11 rotating, 4 combined
• Plattern positioner
• Electronic masking
• Variable Mix-Flip/Flop stage
• Downstream keyer with automatic mix and cut
• Fade to black
• Microprocessor control
• Power failure protected switcher functions
• Optional control function memory (CFM)
• Optional edit interface
• Optional AFV-stage

CFM Control Function Memory

A powerful extension to the RME line of production switchers. The CFM enables the operator to store and recall 100 set-ups in each ME level and up to 10 sequences using any of these set-ups.

R2ZU Dual Channel Caption Adder

• Two fully independent caption channels
• Separate fade to black stage
• Variable auto-fade
• Versatile bordering
• Electronic masking
• 4 Caption inputs with or without additional keysignal
• 4 Colour generators for separate colourising of caption and border
• Storable clip-level, colourising and masking for each input (Option)
• Mix-inhibit for non-synchronous main signal
• Internal pulse-processing via genlock SPG
• By-pass for "Vertical Interval Informations"
• Convenient preview facilities

RMC Continuity Switcher

• Manual and automatic mix and wipe transitions of video and audio programs
• Automatic Fade/Cut transition if one signal is non-synchronous
• Wipe bordering and soft wipes
• Mix/Cut title-insertion
• Title-bordering and colourising
• Background transition at chroma key operation
• Over/under audio mixing
• Microprocessor control
• Optional production switcher for video and audio
• Optional chroma keyer
• Optional event store

MCS-2000 Master Control Switcher

• Full TVS/TAS routing switcher access to up to 250 video/audio sources
• Programmed source name display for 16 input buttons
• Manual and automatic-fades, dissolves and wipes
• Two independent key stages
• Key colourising and bordering
• Communication with TCS machine control system
• Over/under audio mixer
• 4 channel stereo meter bridge with real time display
• On-air-by-pass

TSC-1 Machine Control

A microprocessor/software based system operating up to 100VTRsand/ortelecine chains. Superiorto patch panels or relay switchers for delegating machine control. Control panels MC-24A/S and MC-12/3 provide dynamic machine selection, delegating control of each VTR/film chain to any one of 8 studio control panels or multiplexers. Special functions programmable.

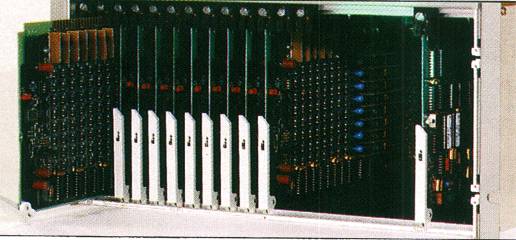

TVS/TAS-2000 Video/Audio Distribution Switching Systems

• A broad range of user-configurable control panels
• Redundant control card capability
• Multi-level breakaway capability (7 levels standard)
• Coax party line or RS-422 control standard
• SMPTE RS-422 computer control optional
• Internal refresh memory with 120-hour memory save
• Power supply failure indicators on all boards
• Power supply alarm indicators with contact closure for remote alarm
• Fused power supply outputs
• Redundant power supply capability
• No PROM changing on crosspoint boards
• Vertical interval switching of video
• Clamped video inputs
• Suitable for "SOUND IN SYNC-SIGNAL
• Field expansion of outputs without rewire
• Compact-10 x 10 matrix arrangement 60 x 10 audio and video or 130 x 10 audio or video in 8% card cage
• Internal cooling fans with air flow failure alarm indicators. Fans removable during normal operation
• Matrix board "in use" indicator
• Computer automated system testing of audio and video circuit parameters through all possible signal paths. Hard copy results supplied
• BNC video and party line connectors
• Dual video outputs
• Capable of interface to TCS-1 machine control systems for technical automation
• Optional full matrix status monitoring
• Optional telephone touch tone control

CP-1400 Control Panel

CP-1400, a single bus 10-key control panel for use with the BTSTVS/TAS video/audio distribution switchers, features alphanumeric LED displays for rapid identification of selected source.

CP-1404 Lever Wheel Control with Status

CP-1404 control panels have lever wheel switches for input selection. LED readouts show true status.

CP-1405 Desk-top Lever Wheel Control Panel

This unit is designed to sit on a desk or table. It provides economical switcher control in offices and conference rooms.

CP-1420 Control Panel

This is a basic control panel providing 20 pushbuttons to select inputs for one switcher output. Inputs can be arranged in numerical order or encoded in any other sequence. Additional buttons may be added to accommodate more inputs. X-Y-control and category/number selection are also available.

CP-1440 Control Panel

These units have three-level alphanumeric lever wheel switches for input selection. Four-character alphanumeric LED displays indicate status.

CP-1450 Control Panel

This is a single-bus, microprocessor based control panel for use with the BTS video/audio distribution switchers. Alphanumeric lever wheels are used to reduce space requirements and cost while still providing category/number operation.

CP-1511 Control Panel

The CP-1511 is a full-matrix control panel for TVS/TAS video/audio distribution switchers. It has alphanumeric LED displays for rapid identification of sources and destinations. The alphanumeric displays, which can consist of any combination of one to four letters or numbers, are complemented by descriptive labels on a 10-key pad to provide simple error-free operation.

TI-2000 Telephone Interface

This interface allows remote control of TVS/TAS-1000 and TVS/TAS-2000 distribution switchers from any BTS Touch-Tone' telephone. All commands to the switcher are entered using the Touch-Tone pad. Prompting of the operator and status from the switcher are reported by a synthesized voice.

SM-2000 Full Matrix Status Monitor

This unit provides full matrix status information in alphanumeric format for entire matrix for display on any video monitor. Selection of display pages may be remotely controlled via the party line control system. The video output is compatible with BTS TVS/TAS-1000 and TVS/TAS-2000 video switchers.

RKX Crossbar Switching System (100 x 100 Kreuzschiene)

Medium and large video matrices up to more than 100 x 100 can be configured based on a 8 x 8 matrix card. A large variety of interface cards and control panels make the system adaptable to any control requirement. Additional switching levels can be controlled (audio, tally, data, etc.). Processors for data display, testing, assignment are available and software can be custom tailored to special needs. The modular design principle and distributed intelligence permit user-specific modifications to be made, not only to the auxiliary equipment but also to the control program.

• Status indication with real time insertion in monitor picture/print-out (status display processor)
• Central monitoring of the operating panels and cross bars with print-out of any errors which may occur (error processor)
• Source reservation for studios or individual output lines (assignment processor)
• Blocking of cross points in accordance with the signal status and distribution (on-air processor)
• Automatic delay equalization (e. g. source lock) when switching video paths and subsequent test check (timing processor)
• Test interface R Tl 9 for simulation of all the basic elements of the control system, for documentation of the data traffic between the command and execution levels with time display, also for error logging
• Switch-over to second central processor RC 657 (stand by)
• Division of the RS 422 bus into several sections
• Real-time dependent control with log copy
• Programmable blocking of individual connection points
• Separate or joint control of a maximum of 20 matrix levels
• Process dependent control (e. g. locking of cross points, according to assignment decisions)

XCC 6016 Colour Corrector - (Darmstadt)

The XCC 6016 is a colour corrector for Component and Composite signals with manual and automatic operation. The Component version of this corrector can be used without needing any additional equipment. The XCC 6016 enables correction of Component and Composite signals at the analog Component level. Colour correction is an important element in modern Component studios. An optional decoder or encoder used for encoded input or output signals, respectively.

• Primary Colour Correction including black-, gamma- and white-balance
- Joysticks with sensitivity control
- Automatic colour correction for black/white or black/ gamma/white
• Secondary Colour Correction (Option) including
- six-sector correction of hue, saturation, luminance
- Chroma control
- Dark desaturation (Chroma dark)
- Luminance control of black-, gamma- and white level
- In-picture sector indication
- Selector 0 dB/+ 6 dB correction range
• Encoder (Option) for PAL, SECAM, NTSC, PAL-M
• Decoder (Option) for PAL, NTSC, PAL-M
• Integrated colour bar generator

Videosignal Distribution - (Darmstadt)
BVA 350 Wide band Videodistribution Amplifier

• Differential input
• Seven 75 Ohm Outputs (6 on rear connection plate, 1 on front panel)
• AC Coupling or Backporch clamping (either fast or slow; compatible with "Sound-in-Sync")
• Front panel video presence indicator
• +/- 0.1 dB to 10 MHz +/- 0/- 1 dB to 30 MHz
• Differential Gain 0.1 %
• Tilt < 0.5% (50 Hz)
• Differential Phase 0.1°
• Continuously variable cable equalizer

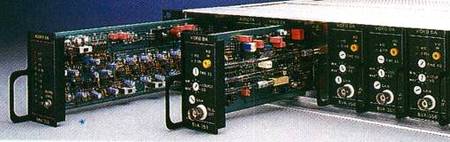

HVX Video Distribution Amplifier
HC 450 - Video Distribution Amplifier (basic unit)

• Differential input
• DC or AC coupling
• Gain adjustable in steps (0, + 3, + 6 dB) or continuously (1.5 dB)
• Delay adjustable (4 ns)
• 2 additional boards possible per channel
• DC-free outputs

The following option boards are available:

HC 451 - Cable Equalizer
HC 452 - Video Equalizer
HC 453 - Video Delay Board
HC 454 - Variable Video Delay Board
HC 455 - Clamping Stage

Pulse Distribution
BPA350 Precision Pulse Distribution Amplifier

• 1 x Input/6 x outputs (on rear panel and 1 x 75 Ohm on the front panel)
• Input pulse present front panel indicator
• Linear pulse reproduction
• Accepts cable equalizer options
• 2 Volt or 4 Volt pulse output
• AGO for constant amplitude
Delay/Regen. Option
• Regenerates pulse at 50 % amplitude points of incoming pulse
• Sin2 pulse shaped
• Selectable front panel delay adjustment
• Two delay ranges: 300- 800 ns and 500-6000 ns

IVX Pulse Distribution System

A two channel regenerating PDA board, which supplies 6 outputs per input forms the basis of the system. Optionally a pulse delay board can be fitted. Power supplies and motherboards are identical to those used with VDA-system HVX.

BAA 350 Audio Distribution Amplifier

• 1 x lnput/6x outputs
• Mix and match balanced and unbalanced outputs with provision for VTR Duplicator Connections
• Very low noise. > 100 dB at typical reference levels, - 98 dB 20 - 20 KHz bandwidth ret. 0.775 V (0 dB)
• Very low distortion. < 0.002 % THD at any level up to + 24dB
• Maximum output level + 27 dB into 600 Ohms
• Front panel master output level control
• Front panel 10-segment LED VU meter

Video Signal Processing Amplifier
HSB Processing Amplifier (PAL)

This unit is used to regenerate sync, blanking and burst of distored video signals which may be present at the output of terrestrial or satellite links as well as at the output of complex studio systems.
It can also re-stablish the correct SC/H-relationship which is important for shift-free VTR-edits and for animation. Automatic control of luminance and chrominance gain and black level refering to aVITS (line 330 according to EBU) is an option
• Differential loop input
• Handling of sound-in-sync signals (regeneration of SIS on request)
• Fade to black
• Tally
• Horizontal and vertical blanking width adjustable
• VITS-blanking selectable line by line
• Low sync and subcarrier jitter
• Automatic bypass for main output

Sync Pulse Generator Familiy
BSG175 Sync. Pulse Generator

• Microprocessor programmed to construct pulse outputs
• Programability of all pulse parameters
• Generates encoded Subcarrier for timing applications
• Digitally compensated master oscillator
• Non volatile memory for pulse parameters
• Highly stable 0.2 ppm maintained within 0 - 70 °C
• Testsignal generator included
• RS 422 serial or parallel port for remote control
• Standards: NTSC, PAL, PAL-M

IGTSync Pulse Generator (PAL)

High stability, low jitter and flexibility by modular design are main features of this system.
• Auto changeover in double systems
• Reference input for external frequency standard
• Phase locking of double systems if reference is made to external frequency standards
• Digital pulse generation
• SC/H-relation according to EBU D 25/79
• 8 V-pulse added to blackburst and colour bar
• SC/H-relation in genlock mode either standard or depending on the input signal
• Pulse output 4 or 2 Vpp
• Subcarrier 2 or 1 Vpp

LDK4210 - Genlock Sync. Pulse Generator

Single or double systems with automatic changeover unit Black burst with 8 field ident, and colour bar generator PLUGE and grid pattern generator LSI technology ensures very stable and reliable operation
Pulse outputs 4 or 2 Vpp
SC/H phase relation according to EBU recommendation for PAL
8 V flag pulse optional output
PAL, PAL-M, NTSC, PAL-N and SECAM versions available Very compact 1 RU (44 mm) high, 19 inch rack mounting.

XD NR 616 VTR Signal Noise Reducer with Timebase Corrector

• Noise reduction and timebase correction of VTRs with external synchronisation
• Improvement of analog encoded Composite or analog Component, Y, PR| PB signals
• Input of U-Matic DUB signal as option
• TBC range of+/-7 lines
• Crosscolour correction
• DOC function included
• Outputsignal as Composite and Y, R, G, B or Y Pr, Pb signals
• Outputsignal in phase with studio sync

XD CP 632 Component Noise Reducer

• Noise reduction of studiosignal at full 5 MHz bandwidth
• Input selectable as R, G, B or as Composite signal via combfilter decoder
• Luminance and chrominance noise reduction
• Selectable range of noise reduction
• Still store operation with line interpolation
• Optional 4:2:2 digital signal output
• Pushbutton control on frontpanel or by remote control

Digital 4:2:2 Signal Processing
XD CD 7184 Digital Encoder

Conversion of analog component signals to digital 4:2:2 component signals. This equipment is used in the digital TV studio and allows the incoming R, G, BorY, PRand PBsignals to be digitized into a parallel digital component signal according to CCIR 601.
• Conversion from analog component signals R, G, B or Y PR) PB to digital component signals as specified by CCIR Rec. 601
• Analog filters designed to CCIR Rec. 601 annex specification
• Two separate outputs (25 pins) for digital component signals (SMPTE RP 125/EBU Tech 3246)
• Identification of H, V and F in the blanking of the digital signal
• Built in test signal generatorfor colour bars, sawtooth and modulated signal. Switchable to one of the two outputs as separate test signal and/or to be inserted as line-test signal in line 20 and 333 in the vertical interval
• Pushbutton control from the frontpanel with LCD display
• Self diagnostic in the case of failure
• Possible to remote control (serial data line)
• Provision for a serial output to connect a terminal for diagnostic

XD DC 7184 Digital Decoder

Conversion of digital 4:2:2 component signals to analog componentsignalsR.G, BandY, PR, PBatthe end of a digital studio.
• Two separate digital inputs (25 pins)
• Pushbutton control from the frontpanel with LCD display
• Remote control
• Self diagnostic
• Serial interface for diagnostic terminal
• Digital viewing filter with roll-off for monitoring
• Full-screen displaying of the line-test signals from vertical blank
• Analog filters designed to CCIR. Rec. 601 annex specification
• Equalizer input for 250 m cable length (optional)
• Low power consumption: 30 VA


The complete monitor range for all applications in professional television. More than 20 colour and monochrome monitors in three classifications for all TV standards. Precision monitors for test and measurement, high quality monitors fortechnical aesthetic picture evaluation, economical standard monitors for preview and observation. Robust mechanical construction and up to the minute technology guarantee outstanding technical performance. Comprehensive operating controls - service oriented modular layout.



  • Precision monitors (3/5 inputs)
    Application: Evaluation (precise evaluation of the quality of television pictures from a measurement point of view)
  • High-quality monitors (2 inputs)
    Application: Evaluation (evaluation of the quality of television pictures from a technical and aesthetic point of view)
  • Standard monitors (1 input)
    Application: Observation (observation and general monitoring of television pictures)

All monitors are available for 625 lines/50 Hz and 525 lines/60 Hz standards. Colour monitors are available for RGB signals as well as for the colour standards, PAL, SECAM, NTSC, PAL-M and PAL-N.

• High resolution IN-LINE gun colour picture tube
• Self-converging
• Black matrix
• EBUorU.S. phosphor
• Colour temperatur 6500 K (3200 K)
• Beam-current feedback
• Inputs: Composite + RGB signals
• RGB-colour selectable
• Remote controls
• Portable
• Single or double rack mounting
• Mains or battery operation
• Dual standard operation

Combined BTS Monitor Range 1987/1988

Group/Range Black/White 625/50 : 525/60 Colour RGB, PAL, PAL-M, NTSC, SECAM
Precision M24BA MC22BA-A1
monitors M38BA MC22BA-A2
    MC51 BA-B
    MC51 BA-B1
    MC51 BA-B 2
    MC51 BA-C1
    MC51 BA-C2
High_quality_monitors M24BB MC37BB
  M38BB MC51BB
  M50BB LDK7020
    CQM 37-120
    COM 51-120
    CQM 67-120
Standard monitors T31BB
  T44 BB
  T61 BB
  T15 BC 9i
  T23 BC 91i
Special monitors K3BB(2.5cm) MC51 BA-H1
  K8BB HRCD51-120
  K15 BB
  K17 BB
  T4BC 91 A
  T5BC 9 A
  T12BC 91 A
  T12BC 91 B
- Werbung Dezent -
Zur Startseite - © 2006 / 2024 - Deutsches Fernsehmuseum Filzbaden - Copyright by Dipl.-Ing. Gert Redlich - DSGVO - Privatsphäre - Redaktions-Telefon - zum Flohmarkt
Bitte einfach nur lächeln: Diese Seiten sind garantiert RDE / IPW zertifiziert und für Leser von 5 bis 108 Jahren freigegeben - Tag und Nacht, und kostenlos natürlich.
